Non Woven Needle Punched Polyester Geotextiles For Highway Railway Geotextiles Fabric
YIXING SHENZHOU Non-woven geotextile is Nonwoven geotextiles are multi-purpose fabrics that are felt-like in appearance.Nonwoven
Geotextiles are available in varying strengths and thicknesses to ensure appropriate material selection for your project. Custom roll sizes are also available.
1. Separation
The isolation of the railway dregs and the roadbed, roadbed and the soft base, surface of the airdrome and parking lot and the groundsill, different dam materials. It isolates the soil and the gravel of two kinds different granule pathway from the groundsill or other buildings.
2. Reinforcement
The highway, railway, soil-stone dam, breakwater, airport, backfill soil of retaining wall, slope protection, etc in which
distributes the earth stress, prevents the side-displacement of the earth body and improves the earthbody stability.
3. Protection
It prevents the bank from being washed out, protects the bank and the bottom, prevents the water and soil from being washed away
| item | value |
| Brand Name | SHENZHOU |
| Model Number | SZ-NW |
| Geotextile Type | Non-Woven Geotextiles |
| Type | Geotextiles |
| Material | PP(polypropylene) PET (polyester) |
| Color | white,black |
| Weight | 100-1000g/sqm |
| width | 1-6m |
| thickness | 0.9-5mm |
| usage | dam,civil environmental,construction project,etc |
| fiber type | staple fiber/long fiber |
| elongation at break | 25-100% |
| Keyword | Polyester/PP non woven geotextile |
Technical Specifications
| Parameter | Value Range | Test Standard |
| Weight | 100-800 g/m² | ISO 9864 |
| Thickness | 0.8-4.5mm | ASTM D5199 |
| Tensile Strength | 2.5-25 kN/m (MD/CD) | ISO 10319 |
| Elongation | 25-100% | ASTM D4632 |
| CBR Puncture | 200-4000N | EN ISO 12236 |
The Difference between PP and PET.
In general, PP density is 0.90 , PET is 1.33-1.34.PP price is cheaper than PET, PP is harder than PET, which means PET has a good sensory feel. PP is much better at chemical resistance than PET, but PP does not perform well when temperature matters, so PP will not work perfectly at very high or low temperature. PP cannot be exposed to sunlight, because PP is not resistant to ultraviolet rays.
Project Applications
1. Road Construction
2. Landfill Systems
3. Drainage Systems
Certifications:

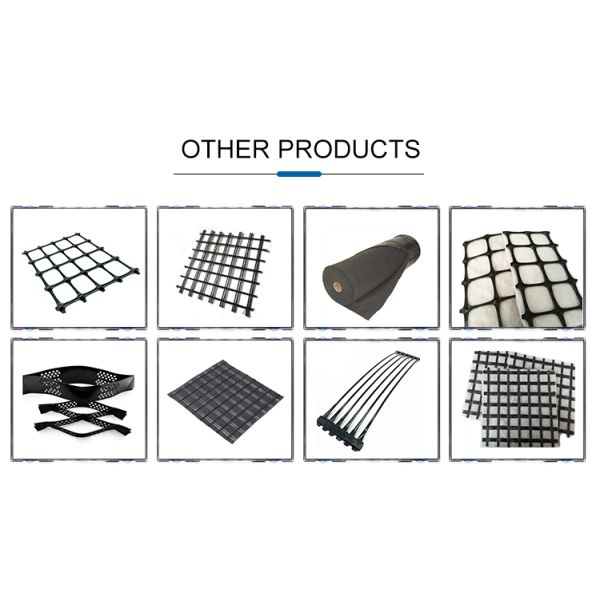

Other recommend Product
